Button Click

The Visual Event On Button Click is executed when a user clicks a custom button that they created.

• Buttons on a Spreadsheet
• Buttons on a Custom Dialog
• Buttons on the Simulation Window

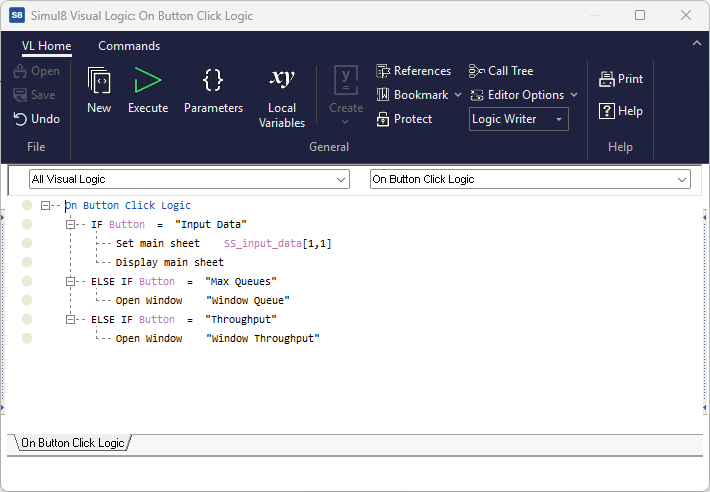

When a button is clicked Simul8 automatically places the name of the button clicked into the special global data variable, Button. This allows you to create Visual Logic to respond as required to each button click as in the example image below.
