Example of Crossed Gage R&R Study

An engineer selects 10 parts that represent the expected range of the process variation. Three operators measure the 10 parts, three times per part, in a random order.

The engineer performs a crossed gage R&R study to assess the variability in measurements that may be from the measurement system.

Open the sample data, GageData.MWX.
Choose Stat > Quality Tools > Gage Study > Gage R&R Study (Crossed).
In Part numbers, enter Part.
In Operators, enter Operator.
In Measurement data, enter Measurement.
Under Method of Analysis, select ANOVA.
Click the Options button. Under Process tolerance, select Upper spec - Lower spec, and enter 8.
Click OK in each dialog box.

Interpret the results

The two-way ANOVA table includes terms for the part, the operator, and the part-operator interaction. If the p-value for the interaction is ≥ 0.05, Minitab omits the interaction from the full model because it is not significant. In this example, the p-value is 0.974, so Minitab generates a second two-way ANOVA table that omits the interaction from the final model.

Use the variance components (VarComp) to compare the variation from each source of measurement error to the total variation. In these results, the %Contribution column in the Gage R&R table shows that the variation from Part-To-Part is 92.24%. This value is much larger than Total Gage R&R, which is 7.76%. Thus, much of the variation is due to differences between parts.

Use %Study Var to compare the measurement system variation to the total variation. The Total Gage R&R equals 27.86% of the study variation. The Total Gage R&R %Contribution might be acceptable depending on the application. For more information, go to Is my measurement system acceptable?.

For this data, the number of distinct categories is 4. According to the AIAG, you need at least 5 distinct categories to have an adequate measuring system. For more information, go to Using the number of distinct categories in a gage R&R study.

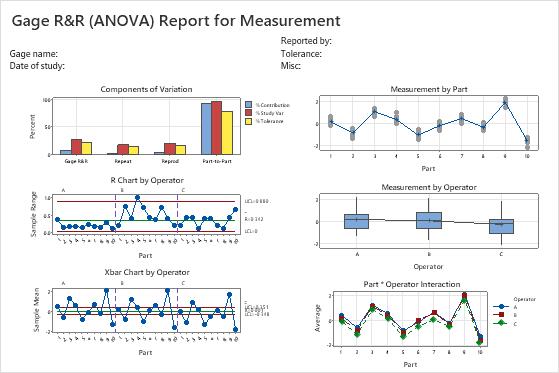

The graphs also provide the following information about the measurement system:

In the Components of Variation graph, the %Contribution from Part-To-Part is larger than that of Total Gage R&R. Thus, much of the variation is due to differences between parts.
The R Chart by Operator shows that Operator B measures parts inconsistently.
In the Xbar Chart by Operator, most of the points are outside the control limits. Thus, much of the variation is due to differences between parts.
The By Part graph shows that the differences between parts are large.
In the By Operator graph, the differences between operators are smaller than the differences between parts, but are significant (p-value = 0.00). Operator C's measurements are slightly lower than the measurements of the other operators.
In the Operator* Part Interaction graph, the lines are approximately parallel and the p-value for the Operator*Part interaction found in the table is 0.974. These results indicate that no significant interaction between each Part and Operator exists.

Two-Way ANOVA Table With Interaction

Source	DF	SS	MS	F	P
Part	9	88.3619	9.81799	492.291	0.000
Operator	2	3.1673	1.58363	79.406	0.000
Part * Operator	18	0.3590	0.01994	0.434	0.974
Repeatability	60	2.7589	0.04598
Total	89	94.6471

Two-Way ANOVA Table Without Interaction

Source	DF	SS	MS	F	P
Part	9	88.3619	9.81799	245.614	0.000
Operator	2	3.1673	1.58363	39.617	0.000
Repeatability	78	3.1179	0.03997
Total	89	94.6471

Variance Components

Source	VarComp	%Contribution (of VarComp)
Total Gage R&R	0.09143	7.76
Repeatability	0.03997	3.39
Reproducibility	0.05146	4.37
Operator	0.05146	4.37
Part-To-Part	1.08645	92.24
Total Variation	1.17788	100.00

Process tolerance = 8

Gage Evaluation

Source	StdDev (SD)	Study Var (6 × SD)	%Study Var (%SV)	%Tolerance (SV/Toler)
Total Gage R&R	0.30237	1.81423	27.86	22.68
Repeatability	0.19993	1.19960	18.42	14.99
Reproducibility	0.22684	1.36103	20.90	17.01
Operator	0.22684	1.36103	20.90	17.01
Part-To-Part	1.04233	6.25396	96.04	78.17
Total Variation	1.08530	6.51180	100.00	81.40

Number of Distinct Categories = 4
