Log Normal Distribution

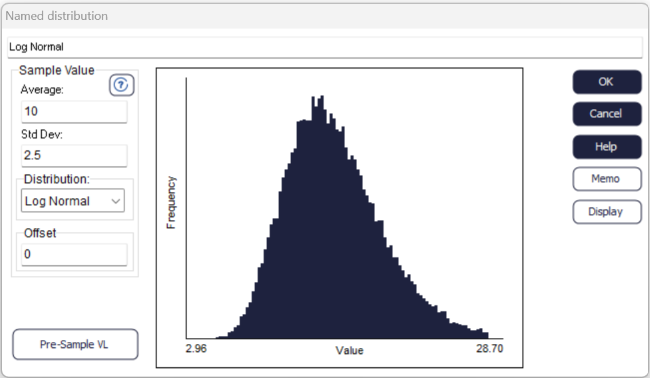

media/lognormal.png

Often used for the time it will take to do a job. It is a bell shaped curve, skewed to the left. No samples can be less than zero.

Minitab Statistical Software reports the parameters of a fitted lognormal distribution as Location and Scale. Simul8 uses Average and Standard Deviation. To enter Minitab’s fitted lognormal distribution into Simul8, you must convert the parameters. For example, these approximate values describe the same fitted lognormal distribution:
  • In Minitab: Location = 4 and Scale = 1
  • In Simul8: Average = 92 and Standard Deviation = 120
